3683S-1-102L | Bourns Electronics GmbH
Cermet potentiometer, 10 turns, 1 kΩ, 2 W, linear, solder lug, 3683S-1-102L
Unit Price (€ / pc.)
74.4464 € *
Available: 48 pcs.
Leadtime: 17 Weeks **
Total Price:
74.45 € *
Price list
Quantity
Price per unit*
1 pcs.
74.4464 €
5 pcs.
69.9720 €
15 pcs.
67.2945 €
50 pcs.
64.3314 €
150 pcs.
61.6420 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cermet digital potentiometers, type Bourns 3683S.
Precision version, linear; Resolution: 0.1 %. Tolerance: ±1.0 % (full scale). Load rating: 2.0 W at +25 °C (0 W at +85 °C). Operating voltage: max. 500 VAC. Test voltage: 1000 VAC. Tolerance: ±3.0 %. Operating temperatures: –25 to +85 °C. Temperature coefficient: ±100, Montage: Snap in.
Type: 1K0

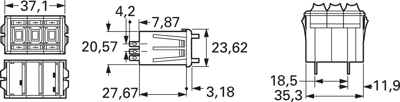

Technical specifications
| ohmscher Widerstand | 1 kΩ | |
| Anschluss | Lötöse | |
| Ausführung | Cermet-Potentiometer | |
| Breite | 23.62 mm | |
| Länge | 37.1 mm | |
| Leistung | 2 W | |
| max. Anzahl der Umdrehungen | 10 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -25 °C | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Ammopack mit 1 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
