3683S-1-504L | Bourns Electronics GmbH

Name: Precision potentiometer, 10 turns, 500 kΩ, 2 W, solder lug, 3683S-1-504L
Brand: Bourns Electronics GmbH
SKU: 06E1478
Price: 52.44 EUR
Availability: OutOfStock

Precision potentiometer, 10 turns, 500 kΩ, 2 W, solder lug, 3683S-1-504L

Order No.: 06E1478

EAN: 4099879951069

MPN:

3683S-1-504L

Series: 3680

Image may differ

Key Specification:

Ausführung Präzisionspotentiometer

ohmscher Widerstand 500 kΩ

Leistung 2 W

Download Datasheet Technical specifications

Unit Price (€ / pc.)

52.4433 € *

Available: 0 pcs.

Leadtime: 17 Weeks **

Add to Cart

Total Price:

52.44 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Precision potentiometer, 3683S-1-504L, Bourns Electronics GmbH

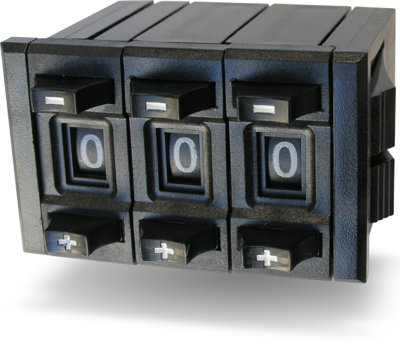

Precision potentiometer with digital display that provides excellent readability.

Features

Repeatable settings
Snap-in panel mount
Resolution to 0.001 %

Technical specifications

	ohmscher Widerstand	500 kΩ
	Anschluss	Lötöse
	Ausführung	Präzisionspotentiometer
	Breite	23.62 mm
	Länge	26.67 mm
	Leistung	2 W
	max. Anzahl der Umdrehungen	10
	max. Temperatur	85 °C
	min. Temperatur	-25 °C
