51AAD-B24-A15L | Bourns Electronics GmbH

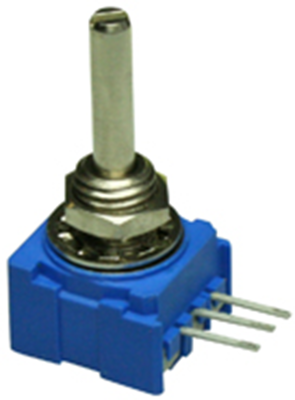

Cermet potentiometer, 10 kΩ, 1 W, linear, solder pin, 51AAD-B24-A15L
Unit Price (€ / pc.)
7.1995 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Conductive plastic potentiometers, type Bourns Serie 50.
Design: models 51 and 53 with solder pins or solder tabs on the side, depending on the type. Version: linear. Linearity: ±5.0 %. Operating temperatures: +1.0 to +125 °C. Test voltage: 1500 VAC. Adjustment range: electrical 270°, mechanical 290° (±5.0° each).
Cermet trimmers with solder pins.
Resistance tolerance: ±10 %. Temperature coefficient: ±150. Power: 1.0 W.
Technical attributes (type, resistance, shaft diameter, shaft length): 51AAD-B24-A15L, 10K, 6.35 mm, 19.05 mm
Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Potentiometer | |
| Breite | 13.5 mm | |
| Drehbereich (elektrisch) | 270 ° | |
| Drehbereich (mechanisch) | 290 ° | |
| Durchmesser der Achse | 6.35 mm | |
| Länge | 12.5 mm | |
| Leistung | 1 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | 1 °C | |
| Montage | gewinkelt | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 45 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
