6639S-1-202 | Bourns Electronics GmbH
Conductive plastic potentiometer, 2 kΩ, 1 W, linear, solder lug, 6639S-1-202
Unit Price (€ / pc.)
19.5517 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Conductive plastic potentiometers, type Bourns 6639.
Single-turn; Design: bushing mount and 6.35 mm -shaft. Version: linear, very high resolution and extended useful life. Linearity: ±2.0 %. Load rating: 1.0 W at +70 °C. Operating voltage: max. 300 V. Operating temperatures: –40 bis +125 °C. Resistance tolerance: ±15 %. Test voltage: 750 VAC. Adjustment range: electrical (+3.0°) and mechanical (+8.0/–0°) 340° each. Bushing thread: 3/8 inch 32 UNEF. Shaft: D 6.35, with adjustment slot.
No end stop.
Type: 2K0

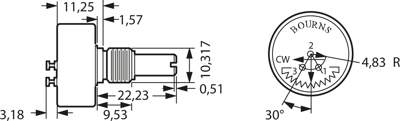

Technical specifications
| ohmscher Widerstand | 2 kΩ | |
| Anschluss | Lötöse | |
| Ausführung | Leitplastik Potentiometer | |
| Drehbereich (elektrisch) | 340 ° | |
| Drehbereich (mechanisch) | 340 ° | |
| Durchmesser der Achse | 6.34 mm | |
| Länge | 11.25 mm | |
| Leistung | 1 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
