82A1D-Z28-BA0/255L | Bourns Electronics GmbH
Rotary potentiometer, 250 kΩ, 0.25 W, logarithmisch, J-hook, 82A1D-Z28-BA0/255L
Unit Price (€ / pc.)
20.7774 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

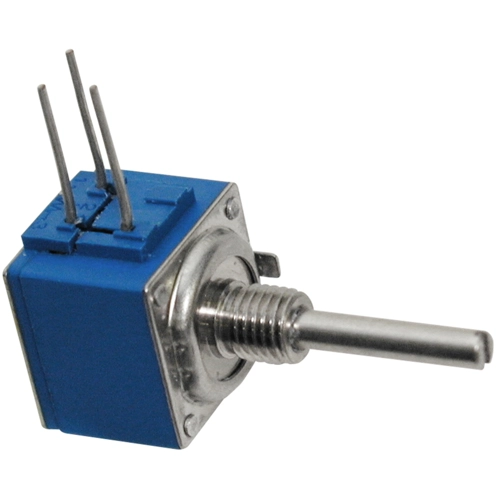

Rotary potentiometer, 82A1D-Z28-BA0/255L, Bourns Electronics GmbH
The control panel is square-shaped with a single turn, featuring a metal shaft and bushing. It offers a consistent and smooth quality feel.
Technical specifications
| ohmscher Widerstand | 250 kΩ | |
| Anschluss | J-hook | |
| Ausführung | Drehpotentiometer | |
| Drehbereich (elektrisch) | 225 ° | |
| Drehbereich (mechanisch) | 300 ° | |
| Durchmesser der Achse | 5.97 mm | |
| Länge | 15.88 mm | |
| Leistung | 0.25 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | gerade | |
| Widerstandsverlauf | logarithmisch |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85334010 |
| Originalverpackung | Tray mit 45 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
