93R1A-R22-A15L | Bourns Electronics GmbH

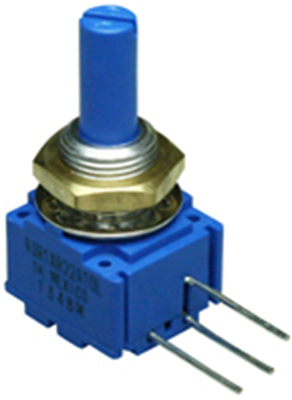

Cermet potentiometer, 10 kΩ, 2 W, linear, solder pin, 93R1A-R22-A15L
Unit Price (€ / pc.)
7.5446 € *
Available: 174 pcs.
Leadtime: 9 Weeks **
Total Price:
7.54 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5446 €
10 pcs.
6.6521 €
45 pcs.
6.2356 €
180 pcs.
5.8786 €
360 pcs.
5.6525 €
*incl. VAT plus shipping costs
**Subject to prior sale
Conductive plastic potentiometers, type Bourns Serie 91.
Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.
Cermet trimmers with solder pins in L-shape arrangement.
Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 93R1A-R22-A15L, 10K, 6.0 mm, 22 mm, plastic
Technical specifications
| ohmic resistance | 10 kΩ | |
| Connection | solder pin | |
| Version | cermet potentiometer | |
| Width | 17.45 mm | |
| Rotary range, electrical | 240 ° | |
| Mechanic rotary range | 300 ° | |
| axle diameter | 6 mm | |
| Length | 15.88 mm | |
| Power | 2 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | angled | |
| Track Taper | linear |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Tray with 45 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
