96A1A-B28-A13L | Bourns Electronics GmbH
Cermet potentiometer, 5 kΩ, 2 W, linear, solder pin, 96A1A-B28-A13L
Unit Price (€ / pc.)
10.2816 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

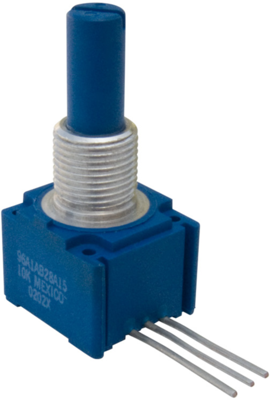

Potentiometer, 96A1A-B28-A13L, Bourns Electronics GmbH
This control panel features a square, sealed design with a single-turn mechanism, providing virtually unlimited electrical circuit isolation.
Features
- Sealed for board wash
- RoHS compliant
Technical specifications
| ohmscher Widerstand | 5 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Potentiometer | |
| Drehbereich (mechanisch) | 300 ° | |
| Durchmesser der Achse | 6.35 mm | |
| Länge | 15.88 mm | |
| Leistung | 2 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | gewinkelt | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 45 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
