PRM162-K420K-203B1 | Bourns Electronics GmbH
Motorized potentiometer, 20 kΩ, 0.05 W, linear, solder pin, PRM162-K420K-203B1
Unit Price (€ / pc.)
9.163 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

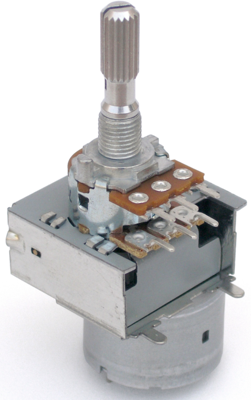

Motorised potentiometer, PRM162-K420K-203B1, Bourns Electronics GmbH
This potentiometer is suitable for both motorized and manual operation, it is remote controllable.
Features
- Dual section
- Smooth manual operating feel
- RoHS compliant
Technical specifications
| ohmscher Widerstand | 20 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Motorisiertes Potentiometer | |
| Drehbereich (mechanisch) | 300 ° | |
| Durchmesser der Achse | 6 mm | |
| Kontaktabstand | RM 5 | |
| Länge | 16 mm | |
| Leistung | 0.05 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -10 °C | |
| Montage | gewinkelt | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85334010 |
| Originalverpackung | Tray mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
