PRS11R-415F-S103B1 | Bourns Electronics GmbH

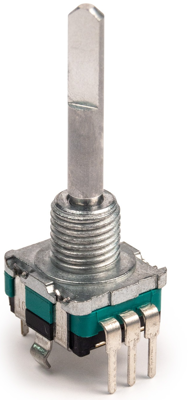

Rotary potentiometer with metal shaft, 10 kΩ, 0.05 W, linear, solder pin, PRS11R-415F-S103B1
Unit Price (€ / pc.)
2.3205 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Potentionmeter, PRS11R-415F-S103B1, Bourns
11 mm rotary metal shaft potentionmeter, with audio and linear tapers, flatted metal shaft option, available for vertical and horizontal mount option.
Features
- PC pin layout for board mount
- Flatted metal shaft option
- Horizontal and vertical mount option
Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Drehpotentiometer mit Metallwelle | |
| Drehbereich (mechanisch) | 300 ° | |
| Durchmesser der Achse | 6 mm | |
| Kontaktabstand | RM 2,5 | |
| Länge | 11 mm | |
| Leistung | 0.05 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
