PRS14R-30120-103A3 | Bourns Electronics GmbH
Rotary Plastic Shaft Dual-Potentiometer, 10 kΩ, 0.05 W, logarithmisch, solder pin, PRS14R-30120-103A3
Unit Price (€ / pc.)
2.5347 € *
Available: 977 pcs.
Leadtime: 20 Weeks **
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
25 pcs.
2.1539 €
100 pcs.
1.9992 €
200 pcs.
1.9159 €
800 pcs.
1.7493 €
*incl. VAT plus shipping costs
**Subject to prior sale

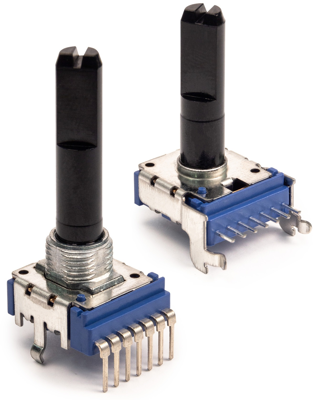

Potentionmeter, PRS14R-30120-103A3, Bourns
The model PRS14R is designed for use in professional audio and lighting applications, low/medium risk medical and laboratory equipment, industrial automation controls and other applications where a reliable potentiometer is required. This model features a small form factor and offers a dual-potentiometric output.
Features
- 15,000 rotational cycle rating
- Optional center tap
- THT mounting type
Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Drehbares Doppel-Potentiometer mit Kunststoffwelle | |
| Drehbereich (mechanisch) | 300 ° | |
| Länge | 14 mm | |
| Leistung | 0.05 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -10 °C | |
| Montage | gerade | |
| Widerstandsverlauf | logarithmisch |
Download
Logistics
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
