PRS14R-40030-103B1 | Bourns Electronics GmbH

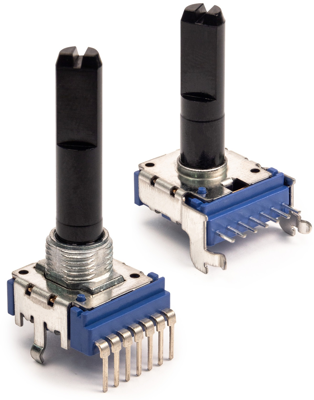

Rotary double potentiometer with plastic shaft, 10 kΩ, 0.05 W, linear, solder pin, PRS14R-40030-103B1
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Potentionmeter, PRS14R-40030-103B1, Bourns
The model PRS14R is designed for use in professional audio and lighting applications, low/medium risk medical and laboratory equipment, industrial automation controls and other applications where a reliable potentiometer is required. This model features a small form factor and offers a dual-potentiometric output.
Features
- 15,000 rotational cycle rating
- Optional center tap
- THT mounting type
Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Drehbares Doppel-Potentiometer mit Kunststoffwelle | |
| Drehbereich (mechanisch) | 300 ° | |
| Länge | 14 mm | |
| Leistung | 0.05 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -10 °C | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
