PTD901-2215F-B103 | Bourns Electronics GmbH

Carbon potentiometer, 10 kΩ, 0.05 W, linear, solder pin, PTD901-2215F-B103

Order No.: 07E5911
EAN: 4099879962973
MPN:
PTD901-2215F-B103
Series: PTD90
PTD901-2215F-B103 Bourns Electronics GmbH Potentiometers

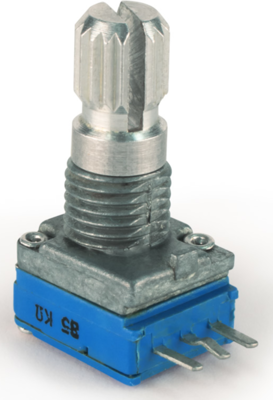

Image may differ
Unit Price (€ / pc.)
1.4518 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
1,411.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
972 pcs.
1.4518 €

Carbon potentiometer, PTD901-2215F-B103, Bourns

Carbon potentiometer, 10 kΩ, 0,05 W, Solder pin

Features

  • Carbon element
  • Ganging up to 8 sections available
  • Knurled and flatted shaft styles
  • Audio taper option
  • RoHS compliant
Technical specifications
ohmscher Widerstand 10 kΩ
Anschluss Lötstift
Ausführung Carbon-Potentiometer
Breite 9.5 mm
Drehbereich (mechanisch) 300 °
Durchmesser der Achse 6 mm
Länge 7.05 mm
Leistung 0.05 W
max. Anzahl der Umdrehungen 1
max. Temperatur 50 °C
min. Temperatur -10 °C
Montage gewinkelt
Widerstandsverlauf linear
Logistics
Ursprungsland CN
Zolltarifnummer 85334010
MSL MSL 1
Originalverpackung Tray mit 162 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
