PTD902-2015K-A502 | Bourns Electronics GmbH

Carbon dual potentiometer, 5 kΩ, 0.025 W, logarithmisch, solder pin, PTD902-2015K-A502

Order No.: 07E5939
EAN: 4099879963253
MPN:
PTD902-2015K-A502
Series: PTD90
PTD902-2015K-A502 Bourns Electronics GmbH Potentiometers

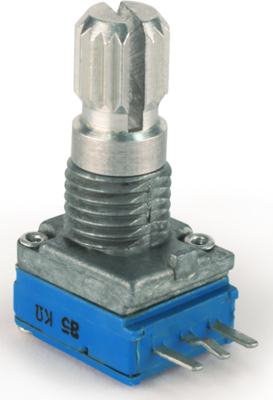

Image may differ
Unit Price (€ / pc.)
1.8683 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
1,614.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
864 pcs.
1.8683 €

Carbon dual potentiometer, PTD902-2015K-A502, Bourns

Carbon dual potentiometer, 5 kΩ, 0,025 W, Solder pin

Features

  • Carbon element
  • Ganging up to 8 sections available
  • Knurled and flatted shaft styles
  • Audio taper option
  • RoHS compliant
Technical specifications
ohmscher Widerstand 5 kΩ
Anschluss Lötstift
Ausführung Carbon-Doppelpotentiometer
Breite 9.5 mm
Drehbereich (mechanisch) 300 °
Durchmesser der Achse 6 mm
Länge 9.65 mm
Leistung 0.025 W
max. Anzahl der Umdrehungen 1
max. Temperatur 50 °C
min. Temperatur -10 °C
Montage gewinkelt
Widerstandsverlauf logarithmisch
Logistics
Ursprungsland CN
Zolltarifnummer 85334010
MSL MSL 1
Originalverpackung Tray mit 144 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
