PTV09A-4020S-A104 | Bourns Electronics GmbH
Carbon potentiometer, 100 kΩ, 0.05 W, logarithmisch, solder pin, PTV09A-4020S-A104
Unit Price (€ / pc.)
1.1543 € *
Available: 31 pcs.
Leadtime: 18 Weeks **
Total Price:
11.54 € *
Price list
Quantity
Price per unit*
10 pcs.
1.1543 €
100 pcs.
0.9282 €
200 pcs.
0.8687 €
1000 pcs.
0.7378 €
2500 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

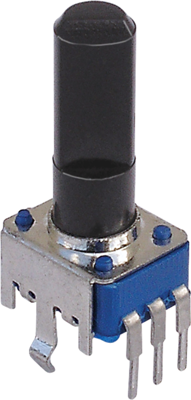

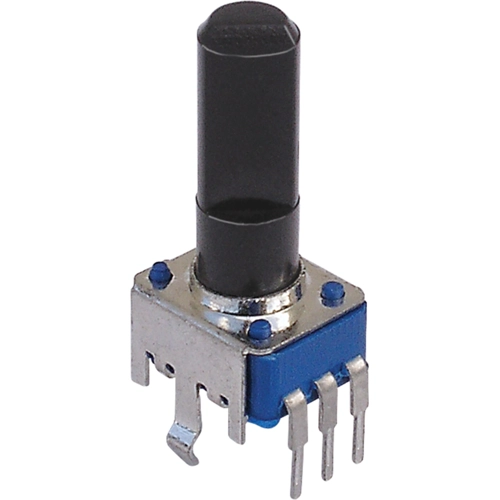

Carbon potentiometer, PTV09A-4020S-A104, Bourns
Carbon potentiometer, 100 kΩ, 0,05 W, Solder pin
Features
- Carbon element
- Insulated shaft
- Center detent option
- RoHS compliant
Technical specifications
| ohmscher Widerstand | 100 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Carbon-Potentiometer | |
| Breite | 10 mm | |
| Drehbereich (mechanisch) | 280 ° | |
| Durchmesser der Achse | 6 mm | |
| Kontaktabstand | RM 2,5 | |
| Länge | 11 mm | |
| Leistung | 0.05 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 50 °C | |
| min. Temperatur | -10 °C | |
| Montage | gewinkelt | |
| Widerstandsverlauf | logarithmisch |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
