4116R-1-681LF | Bourns Electronics GmbH
Resistor network, DIP-16, 680 Ω, 0.25 W, ±2 %, 8 resistors, 4116R-1-681LF
Unit Price (€ / pc.)
1.2614 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Resistance networks, type Bourns 4100R.
Thickfilm, DiL (Dual-in-Line) resistors, not interconnected, separately insulated, all resistors of the same value and with separate connection (isolated resistors)
With 8 resistors, 16-pole, type 4116R-001-RC.
Technical specifications
| ohmic resistance | 680 Ω | |
| Number of resistors | 8 | |

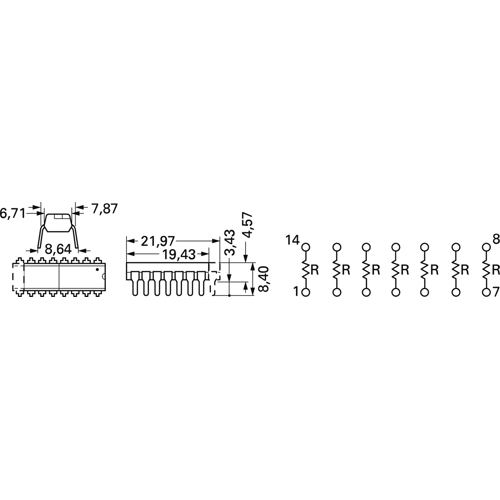

| Width | 8.64 mm | |
| Enclosure | DIP-16 | |
| Height | 4.57 mm | |
| Length | 21.97 mm | |
| Power | 0.25 W | |
| max. operating temperature | 125 °C | |
| Assembly | THT | |
| Tolerance | ±2 % | |
| Temperature coefficient | ±100 ppm/°C |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85332100 |
| MSL | MSL 1 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
