4604X-102-104LF | Bourns Electronics GmbH
Resistor network, SIP-4, 100 kΩ, 0.3 W, ±2 %, 2 resistors, 4604X-102-104LF
Unit Price (€ / pc.)
0.2868 € *
Available: 1,020 pcs.
Leadtime: 19 Weeks **
Total Price:
5.74 € *
Price list
Quantity
Price per unit*
20 pcs.
0.2868 €
100 pcs.
0.2118 €
500 pcs.
0.1678 €
2000 pcs.
0.1392 €
4000 pcs.
0.1226 €
*incl. VAT plus shipping costs
**Subject to prior sale
Resistance networks, type Bourns 4600X.
Thickfilm, SiL (Single-in-Line) resistors, not interconnected, separately insulated, all resistors of the same value and with separate connection (isolated resistors)
With 2 resistors, 4-pole, type 4604X-102-RC.

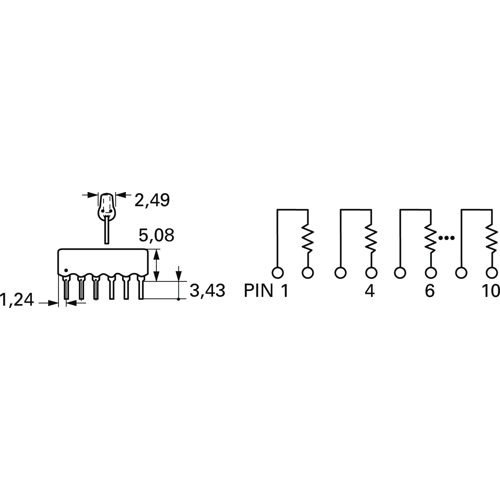

Technical specifications
| ohmscher Widerstand | 100 kΩ | |
| Anzahl der Widerstände | 2 | |
| Breite | 2.49 mm | |
| Gehäuse | SIP-4 | |
| Höhe | 5.08 mm | |
| Länge | 10.11 mm | |
| Leistung | 0.3 W | |
| max. Temperatur | 125 °C | |
| Montage | THT | |
| Toleranz | ±2 % | |
| Temperaturkoeffizient | ±100 ppm/°C |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85332100 |
| MSL | MSL 1 |
| Originalverpackung | Bulk mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
