CRE2512-FZ-R003E-3 | Bourns Electronics GmbH
Resistor, metal strip, SMD 2512 (6330), 3 mΩ, 3 W, ±1 %, CRE2512-FZ-R003E-3
Unit Price (€ / pc.)
0.7973 € *
Available: 3,638 pcs.
Leadtime: 18 Weeks **
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7973 €
50 pcs.
0.7021 €
250 pcs.
0.6069 €
*incl. VAT plus shipping costs
**Subject to prior sale

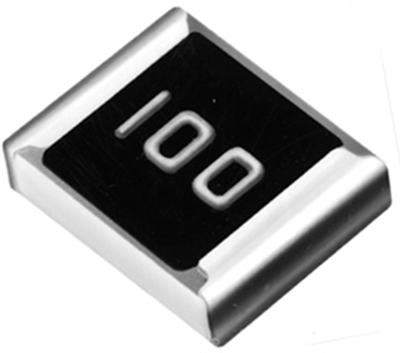

SMD power resistors, type Bourns CRE2512.
Design: 2512. Tolerance: ±1.0 %. Temperature coefficient: ±75 ppm/°C. Material: Mn/Cu alloy. Inductance: max. 5.0 nH. Dimensions: 6.45 x 3.35 mm. Operating temperatures: –55 to +170 °C.
3.0 W power at +70 °C.
Type: 0R003
Technical specifications
| ohmscher Widerstand | 3 mΩ | |
| Bauform | SMD 2512 (6330) | |
| Breite | 3 mm | |
| Höhe | 0.7 mm | |
| Länge | 6.45 mm | |
| Leistung | 3 W | |
| max. Temperatur | 170 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallband | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85332100 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 4.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
