CRM2010-FX-R100ELF | Bourns Electronics GmbH

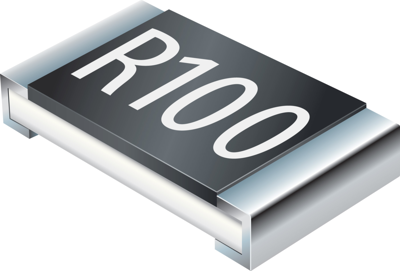

Resistor, thick film, SMD 2010 (5025), 100 mΩ, 1 W, ±1 %, CRM2010-FX-R100ELF
Unit Price (€ / pc.)
0.1428 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Resistor, CRM2010-FX-R100ELF, BOURNS
High power current sense chip resistor.
Features
- Thick film technology
- RoHS compliant
Applications
- Current sensing
- Power supplies
- Stepper motor drives
- Snubber resistor for flyback power supplies
Technical specifications
| ohmic resistance | 100 mΩ | |
| Design | SMD 2010 (5025) | |
| Width | 2.5 mm | |
| Height | 0.6 mm | |
| Length | 5 mm | |
| Power | 1 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/K |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85332100 |
| MSL | MSL 1 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
