CSM2F-6918-L050J01 | Bourns Electronics GmbH
Resistor, metal plate, SMD 6918, 50 µΩ, 36 W, ±5 %, CSM2F-6918-L050J01
Unit Price (€ / pc.)
20.9678 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

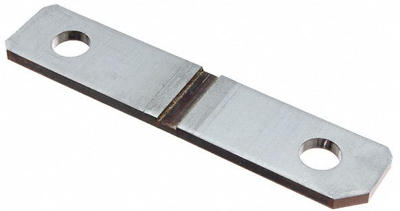

Resistor, CSM2F-6918-L050J01, BOURNS
The CSM2F-6918-L050J01 is a current sensing resistor for hybrid, electric vehicles and battery management systems.
Features
- High pulse power rating
- Tinned terminals
- Up to 50 W permanent power
- RoHS compliant
Applications
- Current sensing in bus bars
- Current sensing in welding equipment
- Frequency converters
Technical specifications
| ohmscher Widerstand | 50 µΩ | |
| Bauform | SMD 6918 | |
| Höhe | 3 mm | |
| Länge | 69 mm | |
| Leistung | 36 W | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -40 °C | |
| Toleranz | ±5 % | |
| Technologie | Metallplatte | |
| Temperaturkoeffizient | ±150 ppm/K |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85332900 |
| MSL | MSL 1 |
| Originalverpackung | Bulk mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
