PWR5322WR510JE | Bourns Electronics GmbH
Resistor, wirewound, SMD 5322, 510 mΩ, 3 W, ±5 %, PWR5322WR510JE
Unit Price (€ / pc.)
0.7854 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

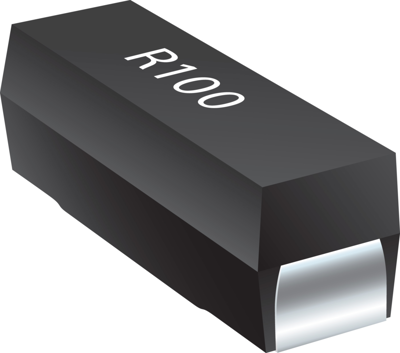

SMD Wirewound resistor, PWR5322WR510JE, Bourns
Resistor, Wirewound, SMD 5322, 510 mΩ, 3 W, ±5 %
Features
- Large terminals and optimized body shape for power dissipation
- Excellent surge capabilities
- Low TCR
- RoHS compliant
Technical specifications
| ohmscher Widerstand | 510 mΩ | |
| Bauform | SMD 5322 | |
| Höhe | 5.65 mm | |
| Länge | 13.5 mm | |
| Leistung | 3 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±5 % | |
| Technologie | Drahtgewickelt | |
| Temperaturkoeffizient | ±90 ppm/K |
Download
Logistics
| Zolltarifnummer | 85332900 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 1.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
