3006P-1-105LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 15 turns, 1 MΩ, 0.75 W, THT, lateral, 3006P-1-105LF
Unit Price (€ / pc.)
2.0706 € *
Available: 80 pcs.
Leadtime: 6 Weeks **
Total Price:
6.21 € *
Price list
Quantity
Price per unit*
3 pcs.
2.0706 €
25 pcs.
1.8207 €
150 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3090 €
*incl. VAT plus shipping costs
**Subject to prior sale

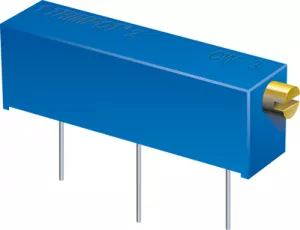

Trimmer potentiometer, 3006P-1-105LF, Bourns
Features
- 3/4 ” Rectangular / Multiturn / Cermet / Industrial / Sealed
- Low PC board profile - only 1/4 ” high

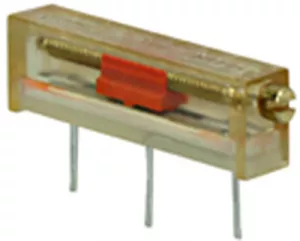

- Transparent housing available, can be set visually without hook-up and instrumentation (“P” style only)
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Width | 4.83 mm | |
| Rotary range, electrical | 5400 ° | |
| Seeting | lateral | |
| Height | 6.35 mm | |
| Contact distance | RM 5.08/12.7 | |
| Length | 19 mm | |
| Power | 0.75 W | |
| max. number of revolutions | 15 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
