3223W-1-502E | Bourns Electronics GmbH
Cermet trimmer potentiometer, 11 turns, 5 kΩ, 0.125 W, SMD, on top, 3223W-1-502E
Unit Price (€ / pc.)
2.7846 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

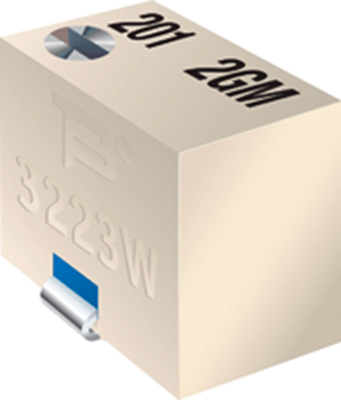

Trimmer potentiometer, 3223W-1-502E, Bourns Electronics GmbH
SMD trimming potentiometer with compact size of 3 mm. Designed to be sealed, making it resistant to standard board wash processing. Features a pick and place centering design, ensuring compatibility with automated placement. Adjustment screw is flush, providing a sleek appearance. Meets the SMD standard trimmer footprint set by EIA/EIAJ/IPC/VECI and can be adjusted from the top.
Technical specifications
| ohmscher Widerstand | 5 kΩ | |
| Anschluss | J-hook | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 3.18 mm | |
| Drehbereich (elektrisch) | 3960 ° | |
| Einstellung | oben | |
| Höhe | 4.16 mm | |
| Kontaktabstand | RM 2,77 | |
| Länge | 3.9 mm | |
| Leistung | 0.125 W | |
| max. Anzahl der Umdrehungen | 11 | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -65 °C | |
| Montage | SMD | |
| Toleranz | ±20 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
