3224J-1-104E | Bourns Electronics GmbH

Cermet trimmer potentiometer, 12 turns, 100 kΩ, 0.25 W, SMD, lateral, 3224J-1-104E

Order No.: 76E2124
EAN: 4099879892430
MPN:
3224J-1-104E
Series: 3224J
Bourns Electronics GmbH

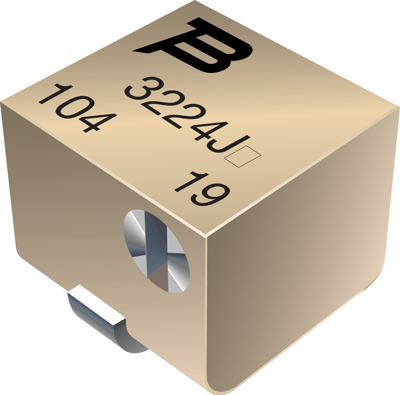

3224J-1-104E Bourns Electronics GmbH Trimmer Potentiometers Image 1

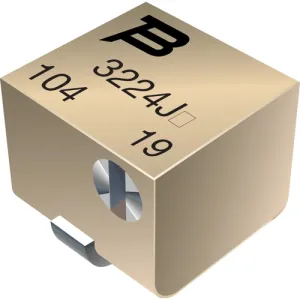

3224J-1-104E Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
3.4391 € *
Available: 132 pcs.
Next delivery: 500 pcs. on 2025-02-03
Leadtime: 7 Weeks **
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
3.0345 €
100 pcs.
2.6537 €
500 pcs.
2.4514 €
1000 pcs.
2.3443 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD Cermet trimmer potentiometer, 3224J-1-104E, Bourns

SMD Cermet trimmer potentiometer, 100 kΩ, 0.25 W

Features

  • Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
  • Sealed to withstand board wash processing
  • Pick and place centering design, with flush adjustment
Technical specifications
ohmic resistance 100 kΩ
Connection J-hook
Version cermet trimmer potentiometer
Width 4.6 mm
Rotary range, electrical 4320 °
Seeting lateral
Height 3.71 mm
Contact distance RM 4.8
Length 4.8 mm
Power 0.25 W
max. number of revolutions 12
max. operating temperature 150 °C
min. operating temperature -65 °C
Assembly SMD
Tolerance ±10 %
Temperature coefficient ±100 ppm/K
Track Taper linear
Logistics
Country of origin MX
Customs tariff number 85334010
MSL MSL 2
Original Packaging Reel with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
