3224W-1-104E | Bourns Electronics GmbH

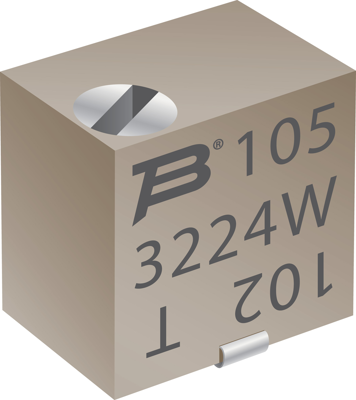

Cermet trimmer potentiometer, 12 turns, 100 kΩ, 0.25 W, SMD, on top, 3224W-1-104E
Unit Price (€ / pc.)
3.4391 € *
Available: 626 pcs.
Next delivery: 250 pcs. on 2025-03-21
Leadtime: 11 Weeks **
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
3.0345 €
250 pcs.
2.6537 €
500 pcs.
2.5466 €
1000 pcs.
2.4514 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD Cermet trimmer potentiometer, 3224W-1-104E, Bourns
SMD Cermet trimmer potentiometer, 100 kΩ, 0.25 W
Features
- Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
- Sealed to withstand board wash processing
- Pick and place centering design, with flush adjustment
Technical specifications
| ohmscher Widerstand | 100 kΩ | |
| Anschluss | J-hook | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 3.5 mm | |
| Drehbereich (elektrisch) | 4320 ° | |
| Einstellung | oben | |
| Höhe | 5.3 mm | |
| Kontaktabstand | RM 2,5 | |
| Länge | 4.8 mm | |
| Leistung | 0.25 W | |
| max. Anzahl der Umdrehungen | 12 | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -65 °C | |
| Montage | SMD | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Rolle mit 250 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
