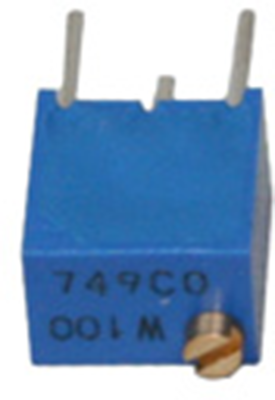

3266W-1-105LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 1 MΩ, 0.25 W, THT, on top, 3266W-1-105LF
Unit Price (€ / pc.)
4.1888 € *
Available: 92 pcs.
Leadtime: 10 Weeks **
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1888 €
10 pcs.
2.9869 €
100 pcs.
2.5466 €
250 pcs.
2.2134 €
500 pcs.
2.0230 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cermet trimmer potentiometer, 3266W-1-105LF, Bourns
Cermet trimmer potentiometer, 1 MΩ, 0.25 W
Features
- Multiturn / Cermet / Industrial / Sealed
- Standoffs allow thorough PC board washing
- Tape and reel packaging available
Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 4.5 mm | |
| Drehbereich (elektrisch) | 4320 ° | |
| Einstellung | oben | |
| Höhe | 7.24 mm | |
| Kontaktabstand | RM 2,54 | |
| Länge | 6.71 mm | |
| Leistung | 0.25 W | |
| max. Anzahl der Umdrehungen | 12 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Stange mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
