3266X-1-104LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 100 kΩ, 0.25 W, THT, lateral, 3266X-1-104LF
Unit Price (€ / pc.)
3.2487 € *
Available: 287 pcs.
Leadtime: 6 Weeks **
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2487 €
10 pcs.
2.8560 €
100 pcs.
2.4990 €
200 pcs.
2.4038 €
1000 pcs.
2.2134 €
*incl. VAT plus shipping costs
**Subject to prior sale

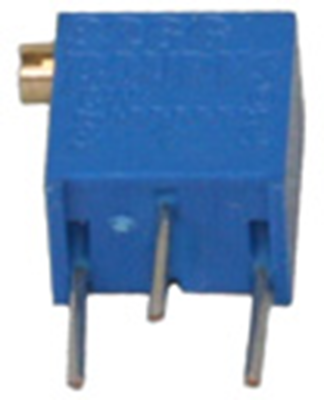

Cermet trimmer potentiometer, 3266X-1-104LF, Bourns
Cermet trimmer potentiometer, 100 kΩ, 0.25 W
Features
- Multiturn / Cermet / Industrial / Sealed
- Standoffs allow thorough PC board washing
- Tape and reel packaging available

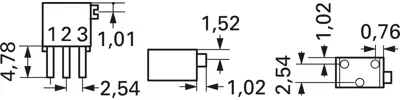

Technical specifications
| ohmic resistance | 100 kΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Width | 4.5 mm | |
| Rotary range, electrical | 4320 ° | |
| Seeting | lateral | |
| Height | 7.24 mm | |
| Contact distance | RM 2.54 | |
| Length | 6.71 mm | |
| Power | 0.25 W | |
| max. number of revolutions | 12 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
