3296W-1-103LF | Bourns Electronics GmbH

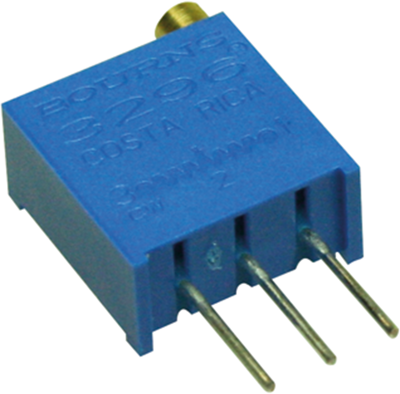

Cermet trimmer potentiometer, 25 turns, 10 kΩ, 0.5 W, THT, on top, 3296W-1-103LF
Unit Price (€ / pc.)
2.7370 € *
Available: 901 pcs.
Leadtime: 11 Weeks **
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
50 pcs.
2.3324 €
100 pcs.
2.2491 €
200 pcs.
2.1539 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale
Trimmer potentiometer, 3296W-1-103LF, Bourns Electronics GmbH
Trimming potentiometer with a chevron seal design, 3/8 inches square. Can be adjusted from the top.

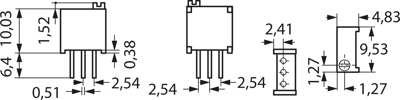

Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 4.83 mm | |
| Drehbereich (elektrisch) | 9000 ° | |
| Einstellung | oben | |
| Höhe | 10.03 mm | |
| Kontaktabstand | RM 2,54 | |
| Länge | 9.53 mm | |
| Leistung | 0.5 W | |
| max. Anzahl der Umdrehungen | 25 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Stange mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
