3306W-1-202 | Bourns Electronics GmbH
Cermet trimmer potentiometer, 2 kΩ, 0.2 W, THT, lateral, 3306W-1-202
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Trimming potentiometer, 3306W-1-202, Bourns Electronics GmbH
This potentiometer has a 6 mm round shape and comes with a protective cover that is resistant to dust and splashes. It also includes a PC board stand-off and a retention feature for added convenience.

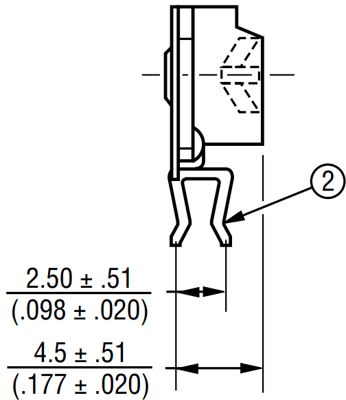

Technical specifications
| ohmscher Widerstand | 2 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 6.81 mm | |
| Drehbereich (elektrisch) | 215 ° | |
| Drehbereich (mechanisch) | 260 ° | |
| Einstellung | seitlich | |
| Höhe | 4.5 mm | |
| Kontaktabstand | RM 2,5 | |
| Länge | 8.4 mm | |
| Leistung | 0.2 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 100 °C | |
| min. Temperatur | -25 °C | |
| Montage | THT | |
| Toleranz | ±25 % | |
| Temperaturkoeffizient | ±250 ppm/K |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Bulk mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
