3313J-1-502E | Bourns Electronics GmbH
Cermet trimmer potentiometer, 5 kΩ, 0.125 W, SMD, on top, 3313J-1-502E
Unit Price (€ / pc.)
2.0468 € *
Available: 448 pcs.
Leadtime: 10 Weeks **
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
250 pcs.
1.5232 €
1000 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale

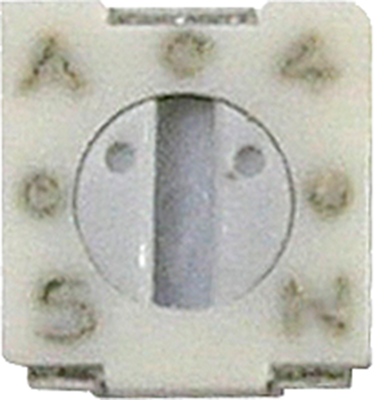

Trimmer potentiometer, 3313J-1-502E, Bourns Electronics GmbH
Trimming potentiometer suitable for surface mount manufacturing processes. 3 mm in size. It features a rotor stop for easy "in-circuit" adjustment. With a rotational and seal life of 100 cycles, it is designed for durability. Comes with a plastic housing that is ideal for RF applications.

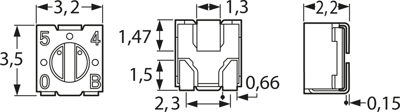

Technical specifications
| ohmscher Widerstand | 5 kΩ | |
| Anschluss | J-hook | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 3.2 mm | |
| Drehbereich (elektrisch) | 220 ° | |
| Drehbereich (mechanisch) | 250 ° | |
| Einstellung | oben | |
| Höhe | 2.2 mm | |
| Kontaktabstand | RM 2,3 | |
| Länge | 3.5 mm | |
| Leistung | 0.125 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Toleranz | ±20 % | |
| Temperaturkoeffizient | ±100 ppm/K |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
