3314G-1-502E | Bourns Electronics GmbH

Cermet trimmer potentiometer, 5 kΩ, 0.25 W, SMD, on top, 3314G-1-502E

Order No.: 76E3866
EAN: 4099879895417
MPN:
3314G-1-502E
Series: 3314G
Bourns Electronics GmbH

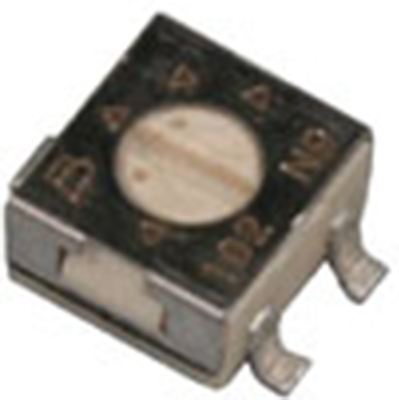

3314G-1-502E Bourns Electronics GmbH Trimmer Potentiometers Image 1

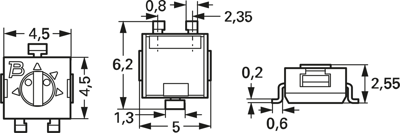

3314G-1-502E Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available: 493 pcs.
Leadtime: 7 Weeks **
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD Cermet trimmer potentiometer, 3314G-1-502E, Bourns

SMD Cermet trimmer potentiometer, 5 kΩ, 0.25 W

Features

  • Surface Mount / Single Turn / Cermet Industrial / Sealed
  • Compatible with surface mount manufacturing processes
  • Compatible with popular vacuum pick-and-place equipmen
  • Side adjust available
Technical specifications
ohmic resistance 5 kΩ
Connection gull-wing
Version cermet trimmer potentiometer
Width 4.5 mm
Rotary range, electrical 210 °
Mechanic rotary range 240 °
Seeting on top
Height 2.55 mm
Contact distance RM 2.35
Length 4.5 mm
Power 0.25 W
max. number of revolutions 1
max. operating temperature 125 °C
min. operating temperature -55 °C
Assembly SMD
Tolerance ±20 %
Temperature coefficient ±100 ppm/K
Logistics
Country of origin TW
Customs tariff number 85334010
MSL MSL 2
Original Packaging Reel with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
