3314J-1-501E | Bourns Electronics GmbH

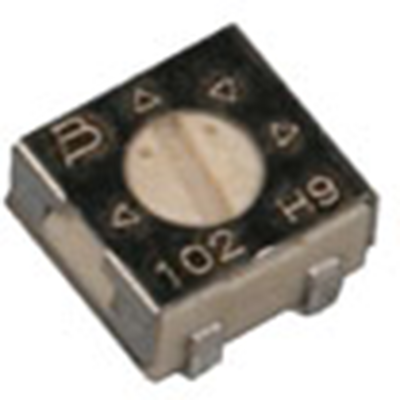

Cermet trimmer potentiometer, 500 Ω, 0.25 W, SMD, on top, 3314J-1-501E
Unit Price (€ / pc.)
2.0468 € *
Available: 80 pcs.
Next delivery: 500 pcs. on 2025-06-12
Leadtime: 11 Weeks **
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD Cermet trimmer potentiometer, 3314J-1-501E, Bourns
SMD Cermet trimmer potentiometer, 500 Ω, 0.25 W
Features
- Surface Mount / Single Turn / Cermet Industrial / Sealed
- Compatible with surface mount manufacturing processes
- Compatible with popular vacuum pick-and-place equipmen
- Side adjust available
Technical specifications
| ohmscher Widerstand | 500 Ω | |
| Anschluss | J-hook | |
| Ausführung | Cermet-Trimmpotentiometer | |

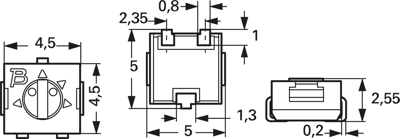

| Breite | 4.5 mm | |
| Drehbereich (elektrisch) | 210 ° | |
| Drehbereich (mechanisch) | 240 ° | |
| Einstellung | oben | |
| Höhe | 2.55 mm | |
| Kontaktabstand | RM 2,35 | |
| Länge | 4.5 mm | |
| Leistung | 0.25 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Toleranz | ±20 % | |
| Temperaturkoeffizient | ±100 ppm/K |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
