3361S-1-203GLF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 20 kΩ, 0.5 W, SMD, lateral, 3361S-1-203GLF
Unit Price (€ / pc.)
1.2019 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

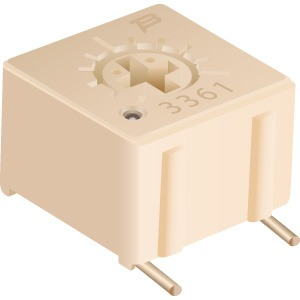

Trimming potentiometer, 3361S-1-203GLF, Bourns Electronics GmbH
This SMD trimming potentiometer has a square shape with a size of 1/4 inch. The rotor of this potentiometer is specifically designed for automatic machine adjustment. It is capable of withstanding harsh environments and immersion cleaning processes. This potentiometer comes in a miniature package and is compatible with surface mount manufacturing processes. Additionally, it is RoHS compliant, ensuring it meets environmental standards.

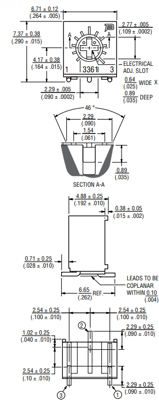

Technical specifications
| ohmscher Widerstand | 20 kΩ | |
| Anschluss | Gull-wing | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 7.37 mm | |
| Drehbereich (elektrisch) | 240 ° | |
| Drehbereich (mechanisch) | 270 ° | |
| Einstellung | seitlich | |
| Höhe | 4.88 mm | |
| Kontaktabstand | RM 2,54 | |
| Länge | 6.71 mm | |
| Leistung | 0.5 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
