3362P-1-501LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 500 Ω, 0.5 W, THT, on top, 3362P-1-501LF

Order No.: 76E4460
EAN: 4099879896124
MPN:
3362P-1-501LF
Series: 3362
Bourns Electronics GmbH

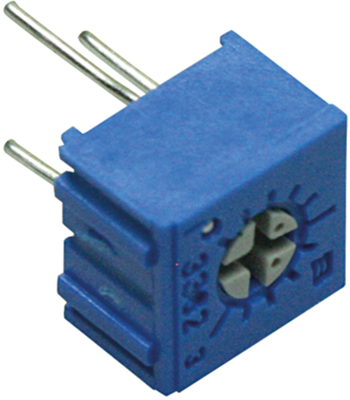

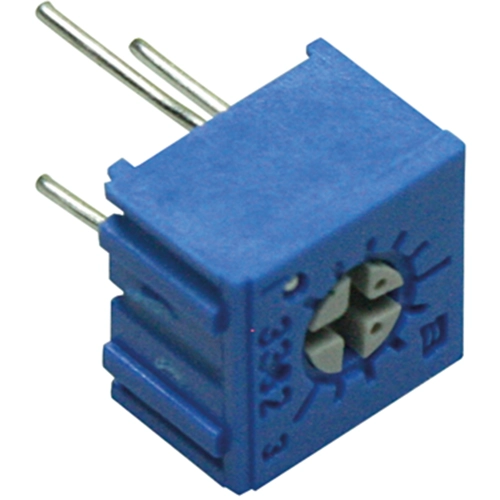

3362P-1-501LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

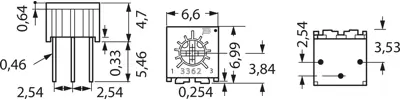

3362P-1-501LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.2257 € *
Available: 118 pcs.
Leadtime: 6 Weeks **
Total Price:
12.26 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2257 €
50 pcs.
1.0829 €
250 pcs.
0.9401 €
1000 pcs.
0.8211 €
2500 pcs.
0.7497 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cermet trimmer potentiometer, 3362P-1-501LF, Bourns

Cermet trimmer potentiometer, 500 Ω, 0.5 W

Features

  • Single-Turn / Cermet / Industrial / Sealed
  • Miniature package
  • Rotor designed for automatic machine adjust interface
  • Withstands harsh environments and immersion cleaning processes
Technical specifications
ohmic resistance 500 Ω
Connection solder pin
Version cermet trimmer potentiometer
Width 6.99 mm
Rotary range, electrical 240 °
Mechanic rotary range 270 °
Seeting on top
Height 4.88 mm
Contact distance RM 2.54
Length 6.6 mm
Power 0.5 W
max. number of revolutions 1
max. operating temperature 125 °C
min. operating temperature -55 °C
Assembly THT
Tolerance ±10 %
Temperature coefficient ±100 ppm/K
Track Taper linear
Logistics
Country of origin CR
Customs tariff number 85334010
MSL MSL 2
Original Packaging Bar with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
