3362P-1-503LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 50 kΩ, 0.5 W, THT, on top, 3362P-1-503LF

Order No.: 76E4474
EAN: 4099879896216
MPN:
3362P-1-503LF
Series: 3362

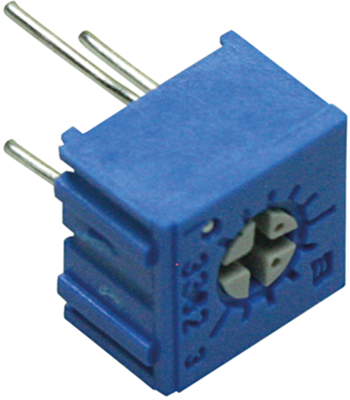

3362P-1-503LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

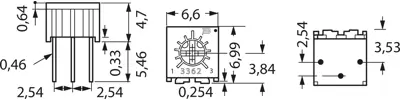

3362P-1-503LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
0.8092 € *
Available: 150 pcs.
Leadtime: 10 Weeks **
Total Price:
40.46 € *
Price list
Quantity
Price per unit*
50 pcs.
0.8092 €
250 pcs.
0.7259 €
500 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cermet trimmer potentiometer, 3362P-1-503LF, Bourns

Cermet trimmer potentiometer, 50 kΩ, 0.5 W

Features

  • Single-Turn / Cermet / Industrial / Sealed
  • Miniature package
  • Rotor designed for automatic machine adjust interface
  • Withstands harsh environments and immersion cleaning processes
Technical specifications
Version Cermet-Trimmpotentiometer
ohmic resistance 50 kΩ
Tolerance ±10 %
Power 0.5 W
Assembly THT
Track Taper linear
Temperature coefficient ±100 ppm/K
Rotary range, electrical 240 °
Mechanic rotary range 270 °
max. number of revolutions 1
Seeting oben
Connection Lötstift
Contact distance RM 2,54
Length 6.6 mm
Width 6.99 mm
Height 4.88 mm
min. operating temperature -55 °C
max. operating temperature 125 °C
Logistics
Country of origin CR
Customs tariff number 85334010
MSL MSL 2
Original Packaging Stange mit 50 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
