3386G-1-103LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 10 kΩ, 0.5 W, THT, on top, 3386G-1-103LF
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Trimming Potentiometer, 3386G-1-103LF, Bourns Electronics GmbH
Features
- Single-Turn / Cermet / Industrial / Sealed
- For trimmer applications/processing
- RoHS compliant
Technical specifications
| ohmic resistance | 10 kΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |

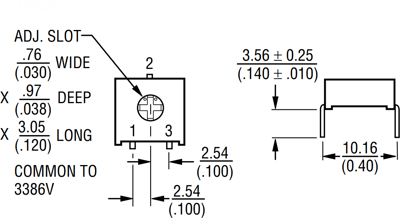

| Width | 4.83 mm | |
| Rotary range, electrical | 280 ° | |
| Mechanic rotary range | 310 ° | |
| Seeting | on top | |
| Height | 9.53 mm | |
| Contact distance | RM 5.08 | |
| Length | 9.53 mm | |
| Power | 0.5 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
