3386H-1-474LF | Bourns Electronics GmbH

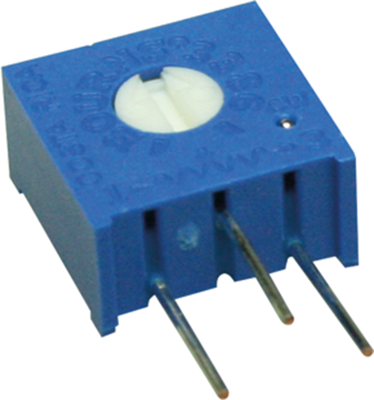

Cermet trimmer potentiometer, 470 kΩ, 0.5 W, THT, lateral, 3386H-1-474LF
Unit Price (€ / pc.)
0.9044 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Cermet trimmers, type Bourns 3386.
Single-turn, wash-proof. Axial or radial, top or side adjustment depending on the type; Electrical range of adjustment: 280°. Load rating: 0.5 W at +85 °C (0 at +125 °C). Operating voltage: max. 300 V. Operating temperatures: –55 to +125 °C. Tolerance: ±10 %. Temperature coefficient: ±100.

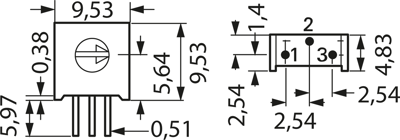

Radial, side adjustment, staggered contacts 1-2-3, type 3386H.
Type: 470K
Technical specifications
| ohmic resistance | 470 kΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Width | 4.83 mm | |
| Rotary range, electrical | 280 ° | |
| Mechanic rotary range | 310 ° | |
| Seeting | lateral | |
| Height | 9.53 mm | |
| Contact distance | RM 2.54 | |
| Length | 9.53 mm | |
| Power | 0.5 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| Original Packaging | Bar with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
