3386P-1-103LF | Bourns Electronics GmbH

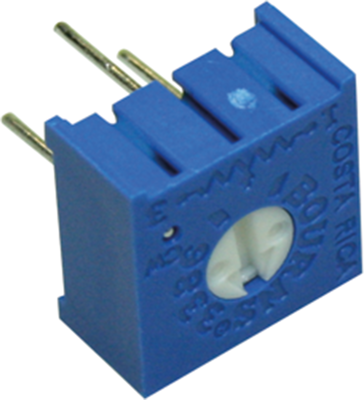

Cermet trimmer potentiometer, 10 kΩ, 0.5 W, THT, on top, 3386P-1-103LF
Unit Price (€ / pc.)
3.0821 € *
Available: 83 pcs.
Leadtime: 11 Weeks **
Total Price:
3.08 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0821 €
10 pcs.
1.9278 €
50 pcs.
1.6898 €
250 pcs.
1.4637 €
1000 pcs.
1.2733 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cermet trimmers, type Bourns 3386.
Single-turn, wash-proof. Axial or radial, top or side adjustment depending on the type; Electrical range of adjustment: 280°. Load rating: 0.5 W at +85 °C (0 at +125 °C). Operating voltage: max. 300 V. Operating temperatures: –55 to +125 °C. Tolerance: ±10 %. Temperature coefficient: ±100.
Axial, top adjustment, staggered contacts, type 3386P.
Type: 10K
Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 4.83 mm | |
| Drehbereich (elektrisch) | 280 ° | |
| Drehbereich (mechanisch) | 310 ° | |
| Einstellung | oben | |
| Höhe | 9.53 mm | |
| Kontaktabstand | RM 5,08/2,54 | |
| Länge | 9.53 mm | |
| Leistung | 0.5 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Stange mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
