3386W-1-502LF | Bourns Electronics GmbH

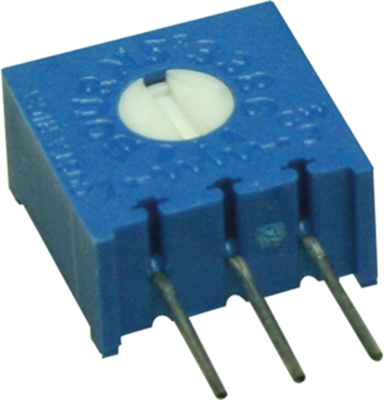

Cermet trimmer potentiometer, 5 kΩ, 0.5 W, THT, lateral, 3386W-1-502LF
Unit Price (€ / pc.)
1.6422 € *
Available: 40 pcs.
Leadtime: 7 Weeks **
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
50 pcs.
1.4518 €
100 pcs.
1.2495 €
500 pcs.
1.0948 €
1000 pcs.
0.9996 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cermet trimmers, type Bourns 3386.
Single-turn, wash-proof. Axial or radial, top or side adjustment depending on the type; Electrical range of adjustment: 280°. Load rating: 0.5 W at +85 °C (0 at +125 °C). Operating voltage: max. 300 V. Operating temperatures: –55 to +125 °C. Tolerance: ±10 %. Temperature coefficient: ±100.
Radial, side adjustment, in-line contacts, type 3386W.
Type: 5K0

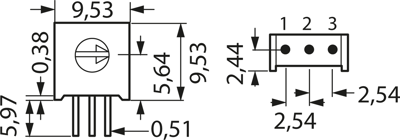

Technical specifications
| ohmic resistance | 5 kΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Width | 4.83 mm | |
| Rotary range, electrical | 280 ° | |
| Mechanic rotary range | 310 ° | |
| Seeting | lateral | |
| Height | 9.53 mm | |
| Contact distance | RM 2.54 | |
| Length | 9.53 mm | |
| Power | 0.5 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
