3386X-1-501LF | Bourns Electronics GmbH

Cermet trimmer potentiometer, 500 Ω, 0.5 W, THT, lateral, 3386X-1-501LF

Order No.: 76E6810
EAN: 4099879897572
MPN:
3386X-1-501LF
Series: 3386

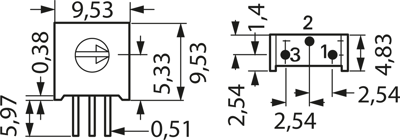

3386X-1-501LF Bourns Electronics GmbH Trimmer Potentiometers Image 1

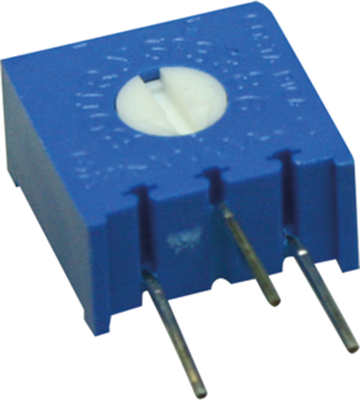

3386X-1-501LF Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available: 154 pcs.
Leadtime: 13 Weeks **
Total Price:
19.28 € *
Price list
Quantity
Price per unit*
10 pcs.
1.9278 €
50 pcs.
1.6898 €
250 pcs.
1.4637 €
1000 pcs.
1.2733 €
2500 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cermet trimmers, type Bourns 3386.

Single-turn, wash-proof. Axial or radial, top or side adjustment depending on the type; Electrical range of adjustment: 280°. Load rating: 0.5 W at +85 °C (0 at +125 °C). Operating voltage: max. 300 V. Operating temperatures: –55 to +125 °C. Tolerance: ±10 %. Temperature coefficient: ±100.

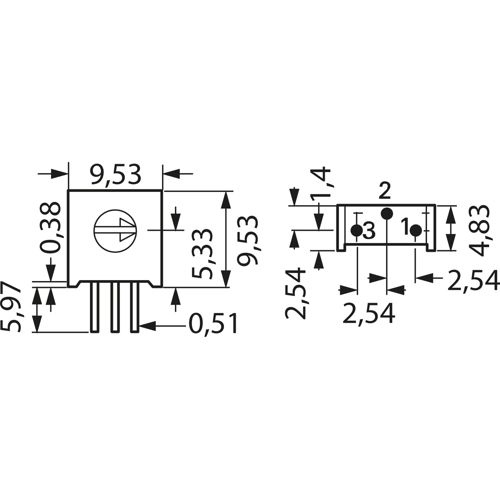

Radial, side adjustment, staggered contacts 3-2-1, type 3386X.

Type: 500R

Technical specifications
Ausführung Cermet-Trimmpotentiometer
ohmscher Widerstand 500 Ω
Toleranz ±10 %
Leistung 0.5 W
Montage THT
Widerstandsverlauf linear
Temperaturkoeffizient ±100 ppm/K
Drehbereich (elektrisch) 280 °
Drehbereich (mechanisch) 310 °
max. Anzahl der Umdrehungen 1
Einstellung seitlich
Anschluss Lötstift
Kontaktabstand RM 5,08/2,54
Länge 9.53 mm
Breite 4.83 mm
Höhe 9.53 mm
min. Temperatur -55 °C
max. Temperatur 125 °C
Logistics
Ursprungsland CR
Zolltarifnummer 85334010
MSL MSL 2
Originalverpackung Stange mit 50 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
