PV36Z103C01B00 | Bourns Electronics GmbH

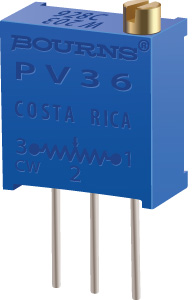

Cermet trimmer potentiometer, 25 turns, 10 kΩ, 0.5 W, THT, lateral, PV36Z103C01B00
Unit Price (€ / pc.)
2.023 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Trimming potentiometer, PV36Z103C01B00, Bourns Electronics GmbH
Multiturn trimming potentiometer is designed with a lead seal, allowing for different adjustments. It can be pre-adjusted in clockwise, counter-clockwise, or the standard 50 % position. The potentiometer also features top adjustment and standoffs that enable thorough PC board washing. Additionally, it incorporates a chevron seal design.
Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 4.83 mm | |
| Drehbereich (elektrisch) | 9000 ° | |
| Einstellung | seitlich | |
| Höhe | 10.03 mm | |
| Kontaktabstand | RM 2,54 | |
| Länge | 9.53 mm | |
| Leistung | 0.5 W | |
| max. Anzahl der Umdrehungen | 25 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Stange mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
