PVG3A502C01R00 | Bourns Electronics GmbH
Cermet trimmer potentiometer, 5 kΩ, 0.25 W, SMD, on top, PVG3A502C01R00
Unit Price (€ / pc.)
0.8092 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
SMD Cermet trimmer potentiometer, PVG3A502C01R00, Bourns
Features
- Surface Mount 3 mm Square / Single-turn / Cermet / Sealed
- Available in J-hook, gull-wing and reverse gull-wing pin styles
- 3 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint
Technical specifications
| ohmic resistance | 5 kΩ | |
| Connection | J-hook | |
| Version | cermet trimmer potentiometer | |

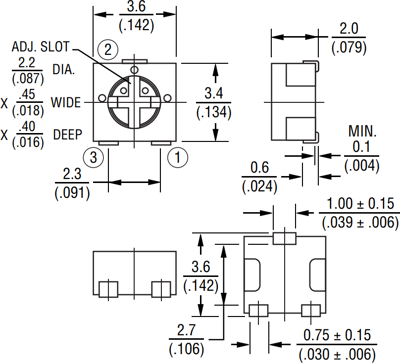

| Width | 3.4 mm | |
| Rotary range, electrical | 210 ° | |
| Mechanic rotary range | 250 ° | |
| Seeting | on top | |
| Height | 2 mm | |
| Contact distance | RM 2.3 | |
| Length | 3.6 mm | |
| Power | 0.25 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Tolerance | ±20 % | |
| Temperature coefficient | ±150 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
