PVG3G200C01R00 | Bourns Electronics GmbH

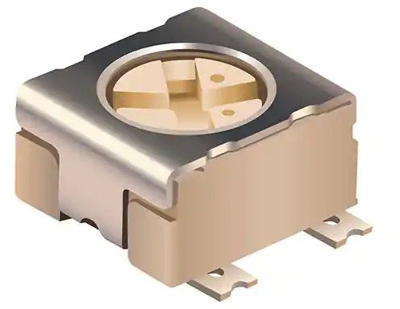

Cermet trimmer potentiometer, 20 Ω, 0.25 W, SMD, on top, PVG3G200C01R00
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Trimming potentiometer, PVG3G200C01R00, Bourns Electronics GmbH
SMD sealed type single-turn trimming potentiometer. Designed to meet the 3 mm footprint standard of EIA/EIAJ/IPC/VECI SMD trimmers. It can be pre-adjusted at the clockwise, counter-clockwise, or standard 50 % position. The potentiometer also features a metal cover for thermal protection and heat transfer. Additionally, it has been tested under a water test at 85 °C for 60 seconds without any bubbles.
Technical specifications
| ohmscher Widerstand | 20 Ω | |
| Anschluss | Gull-wing | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 3.4 mm | |
| Drehbereich (elektrisch) | 210 ° | |
| Drehbereich (mechanisch) | 250 ° | |
| Einstellung | oben | |
| Höhe | 2 mm | |
| Kontaktabstand | RM 2,3 | |
| Länge | 3.6 mm | |
| Leistung | 0.25 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Toleranz | ±20 % | |
| Temperaturkoeffizient | ±150 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
