PVG5H200C03R00 | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 20 Ω, 0.25 W, SMD, lateral, PVG5H200C03R00
Unit Price (€ / pc.)
3.1535 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Trimming potentiometer, PVG5H200C03R00, Bourns Electronics GmbH
SMD sealed type single-turn trimming potentiometer is designed for top adjustment and can be pre-adjusted at either clockwise, counter-clockwise, or the standard 50 % position. It features a 5 mm design that meets the EIA/EIAJ/IPC/VECI SMD standard trimmer footprint.

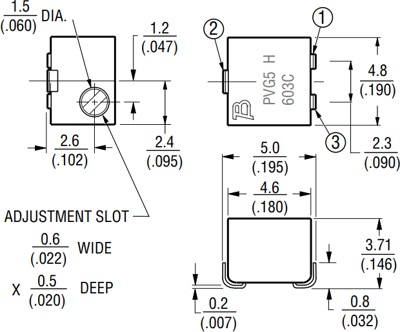

Technical specifications
| ohmscher Widerstand | 20 Ω | |
| Anschluss | J-hook | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 4.9 mm | |
| Drehbereich (elektrisch) | 3960 ° | |
| Einstellung | seitlich | |
| Höhe | 2.6 mm | |
| Kontaktabstand | RM 2,3 | |
| Länge | 3.7 mm | |
| Leistung | 0.25 W | |
| max. Anzahl der Umdrehungen | 12 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±150 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334010 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
