TC33X-2-104E | Bourns Electronics GmbH

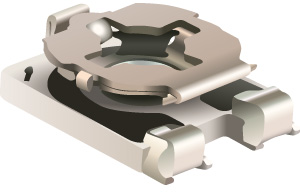

Cermet trimmer potentiometer, 100 kΩ, 0.1 W, SMD, on top, TC33X-2-104E
Unit Price (€ / pc.)
0.3689 € *
Available: 2,350 pcs.
Leadtime: 20 Weeks **
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3689 €
50 pcs.
0.2868 €
250 pcs.
0.2356 €
1000 pcs.
0.2083 €
2000 pcs.
0.1880 €
*incl. VAT plus shipping costs
**Subject to prior sale
Trimming Potentiometer TC33 - 3 mm SMD Trimpot, TC33X-2-104E
Features
- Recommended for reflow soldering
- Rotor desigcompatible with pick and place and automatic adjustment equipment
- 3 mm size meets EIA/EIAJ standard trimmer footprint

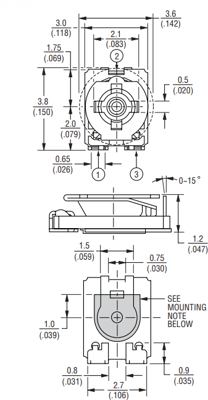

Technical specifications
| ohmscher Widerstand | 100 kΩ | |
| Anschluss | J-hook | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 3 mm | |
| Drehbereich (elektrisch) | 200 ° | |
| Einstellung | oben | |
| Höhe | 1.2 mm | |
| Kontaktabstand | RM 0,8 | |
| Länge | 3.8 mm | |
| Leistung | 0.1 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 100 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Toleranz | ±25 % | |
| Temperaturkoeffizient | ±250 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334010 |
| MSL | MSL 2 |
| Originalverpackung | Rolle mit 2.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
