TC33X-2-333E | Bourns Electronics GmbH
Cermet trimmer potentiometer, 33 kΩ, 0.1 W, SMD, on top, TC33X-2-333E
Unit Price (€ / pc.)
0.1880 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

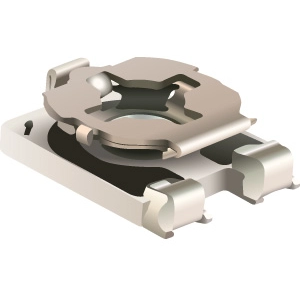

Trimming potentiometer, TC33X-2-333E, Bourns Electronics GmbH
SMD trimming potentiometer with a rotor design that is suitable for pick and place and automatic adjustment equipment. It meets the EIA/EIAJ standard trimmer footprint with its 3 mm size.

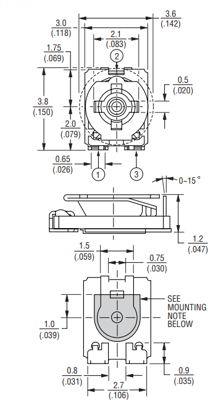

Technical specifications
| ohmscher Widerstand | 33 kΩ | |
| Anschluss | J-hook | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 3 mm | |
| Drehbereich (elektrisch) | 200 ° | |
| Einstellung | oben | |
| Höhe | 1.2 mm | |
| Kontaktabstand | RM 0,8 | |
| Länge | 3.8 mm | |
| Leistung | 0.1 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 100 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Toleranz | ±25 % | |
| Temperaturkoeffizient | ±250 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334010 |
| Originalverpackung | Rolle mit 2.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
