CDSOD323-T03SC | Bourns Electronics GmbH

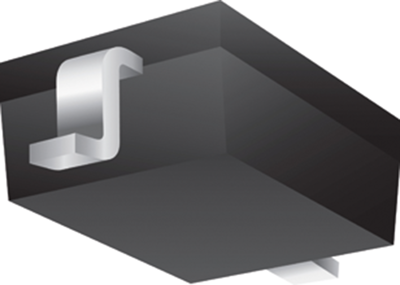

SMD TVS diode, Bidirectional, 400 W, 3.3 V, SOD-323, Bourns Electronics GmbH CDSOD323-T03SC
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
SMD suppressor diodes, type Bourns CDSOD323.
Package: SOD323, pulse peak losses unidirectional/bidirectional: 500/400 W. Operating temperatures: –55 to +150 °C.
Bidirectional version.
Technical attributes (type, rated voltage, breakdown voltage, capacitance): CDSOD323–T03SC, 3.3 V, 4.0 V, 200 pF
Technical specifications
| Version | Bidirectional | |
| Breakdown voltage | 4 V | |
| Enclosure | SOD-323 | |
| Pulse power loss | 400 W | |
| Capacity | 200 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 3.3 V |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
