PTVS2-026C-H | Bourns Electronics GmbH

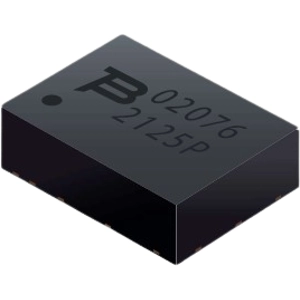

SMD TVS diode, bidirectional, 30 V, DFN, Bourns Electronics GmbH PTVS2-026C-H
Unit Price (€ / pc.)
2.5347 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
High current TVS diode, PTVS2-026C-H, Bourns Electronics GmbH
The high current TVS diode is designed for use in high power DC bus clamping applications.
Features
- Bidirectional TVS
- Low clamping voltage under surge
- Excellent performance over temperature
Applications
- Protection against lightning strikes, inductive and transient surges up to rated limits
- Exposed PoE ports
- Small cell, Remote Radio Units (RRUs) and Baseband Units (BBUs)
- High power DC bus protection
Technical specifications
| Anzahl der Dioden | 1 | |
| Ausführung | Bidirektional | |
| Durchbruchspannung | 32 V | |
| Gehäuse | DFN | |
| Kapazität | 3 nF | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Sperrspannung | 30 V |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
