CGA0603MLA-32120E | Bourns Electronics GmbH

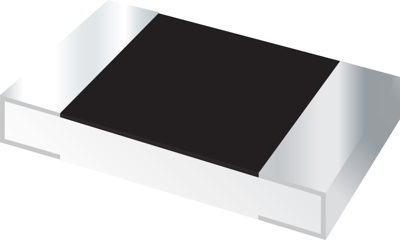

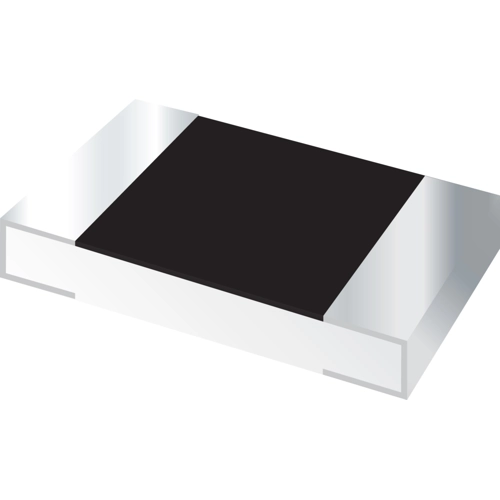

Varistor, SMD 0603, VV 61.45 V, 5 A, 32 V (DC), 25 V (AC), 0.25 J, CGA0603MLA-32120E
Unit Price (€ / pc.)
0.1809 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
ESD Clamp protector, CGA0603MLA-32120E, Bourns Electronics GmbH
The CGA0603MLA-32120E is a multlayered varistor designed specifically for use in automotive circuits requiring ESD protection. This robust protectors exhibit extremely fast response times to ESD events making them ideal for protecting a wide array automotive electronics.
Features
- AEC-Q200 compliant
- Meets IEC 61000-4-2 standard
- Proprietary insulating overcoat provides low and stable leakage current
- Quick response time
- High transient current capability
- High reliability
- RoHS compliant
Applications
- HDMI, CANbus, Ethernet
- GPS, Camera links, Sensors
- Touchscreen interfaces
- Circuits sensitive to ESD
Technical specifications
| Bauform | SMD 0603 | |
| Energieabsorption | 0.25 J | |
| max. Stoßstrom (8/20 µs) | 5 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 25 V | |
| Nennspannung (DC) | 32 V | |
| Varistor Spannung Typ | 61.45 V |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85334090 |
| Originalverpackung | Rolle mit 4.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
