CGA0805MLA-16401E | Bourns Electronics GmbH

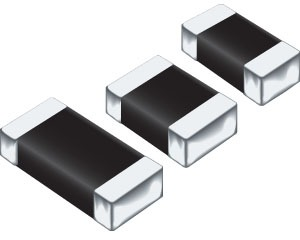

Varistor, SMD 0805, VV 25 V, 120 A, 16 V (DC), 14 V (AC), 0.3 J, CGA0805MLA-16401E
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
ESD Clamp protector, CGA0805MLA-16401E, Bourns Electronics GmbH
The CGA0805MLA-16401E is a multlayered varistor designed specifically for use in automotive circuits requiring ESD protection. This robust protectors exhibit extremely fast response times to ESD events making them ideal for protecting a wide array automotive electronics.
Features
- AEC-Q200 compliant
- Meets IEC 61000-4-2 standard
- Proprietary insulating overcoat provides low and stable leakage current
- Quick response time
- High transient current capability
- High reliability
- RoHS compliant
Applications
- HDMI, CANbus, Ethernet
- GPS, Camera links, Sensors
- Touchscreen interfaces
- Circuits sensitive to ESD
Technical specifications
| Bauform | SMD 0805 | |
| Energieabsorption | 0.3 J | |
| max. Stoßstrom (8/20 µs) | 120 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 14 V | |
| Nennspannung (DC) | 16 V | |
| Varistor Spannung Typ | 25 V |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85334090 |
| Originalverpackung | Rolle mit 4.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
