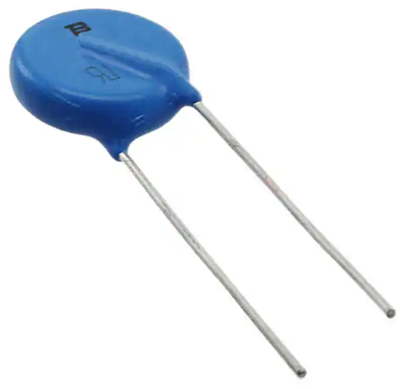

GMOV-14D111K | Bourns Electronics GmbH
Hybrid protection component, radial, VV 180 V, 6000 A, 150 V (DC), 115 V (AC), ±10 %, 60 J, GMOV-14D111K
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Hybrid protection component, GMOV-14D111K, Bourns Electronics GmbH
The GMOV-14D111K hybrid protection component has a high performance as a long life protector with low capacitance and, most importantly, very low leakage. This product is ideally suited for any number of AC and DC power applications where a high level of performance is required over time.
Features
- Bidirectional protection
- Low capacitance
- UL Type 5 Recognized
- RoHS compliant
Applications
- White goods
- Power line communications
- High value consumer goods
- Solar inverters
- Power supplies
- Distribution systems
Technical specifications
| Bauform | radial | |
| Energieabsorption | 60 J | |
| max. Stoßstrom (8/20 µs) | 6000 A | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -25 °C | |
| Nennspannung (AC) | 115 V | |
| Nennspannung (DC) | 150 V | |
| Toleranz | ±10 % | |
| Varistor Spannung Typ | 180 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Bulk mit 400 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
